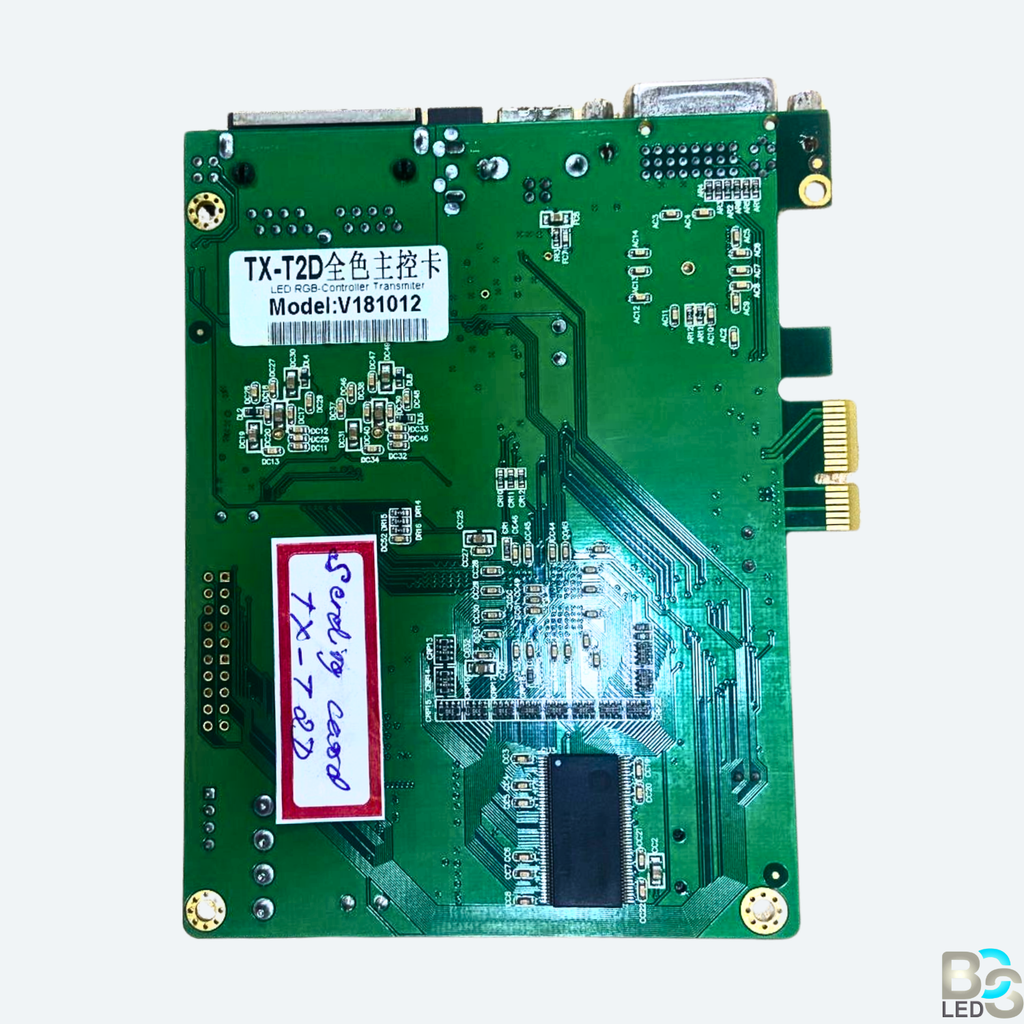

TX-T2D Sending Card

Product Description

TX-T2D is a synchronous controller sending card specially developed for LED full-color display.

Features

1. One DVI video input. This card receives DVI display data from a graphics card or video processor. It can support mainstream DVI graphics card or video processor, and can be installed in the video processor.
2. The card supports a maximum display resolution of 2048x1152, supports 1024x768, 1280x1024, 1440x900, 1600x900, 1600x1050, 1920x1080, 1920x1200, 2048x1152.
3. Dual network port output. The two output ports can be used independently, or they can be set as the same output for redundancy. Each output port can control any combination of width and height within the range of 650,000 points. The output of the two network ports can support a maximum of 1.3 million display screens. The number of rows and columns controlled can be set arbitrarily.
4. Two network ports can be used to control the display screens of two different cell board models.
5. One audio input interface. Hi-Fi high-fidelity stereo sampling can transmit audio signals to the display screen through network cables.
6. USB interface control, multiple units can be cascaded for unified control.
7. Built-in protection lock function, the password is saved by the customer himself.
8. Board design, can be easily inserted into the PCI slot of the computer.

Technical Parameters

Product name: TX-T2D

Power input: DC+5V

Signal input: DVI

Signal output: Gigabit network mode

Control mode: CP210X USB-RS232 interface

Resolution: Max 2048x1152

Transmission medium: super category 5 network cable

Transmission distance: up to 140 meters, measured 170 meters.

Working temperature: -20ºC-70ºC

Dimensions: 132mm X 99mm

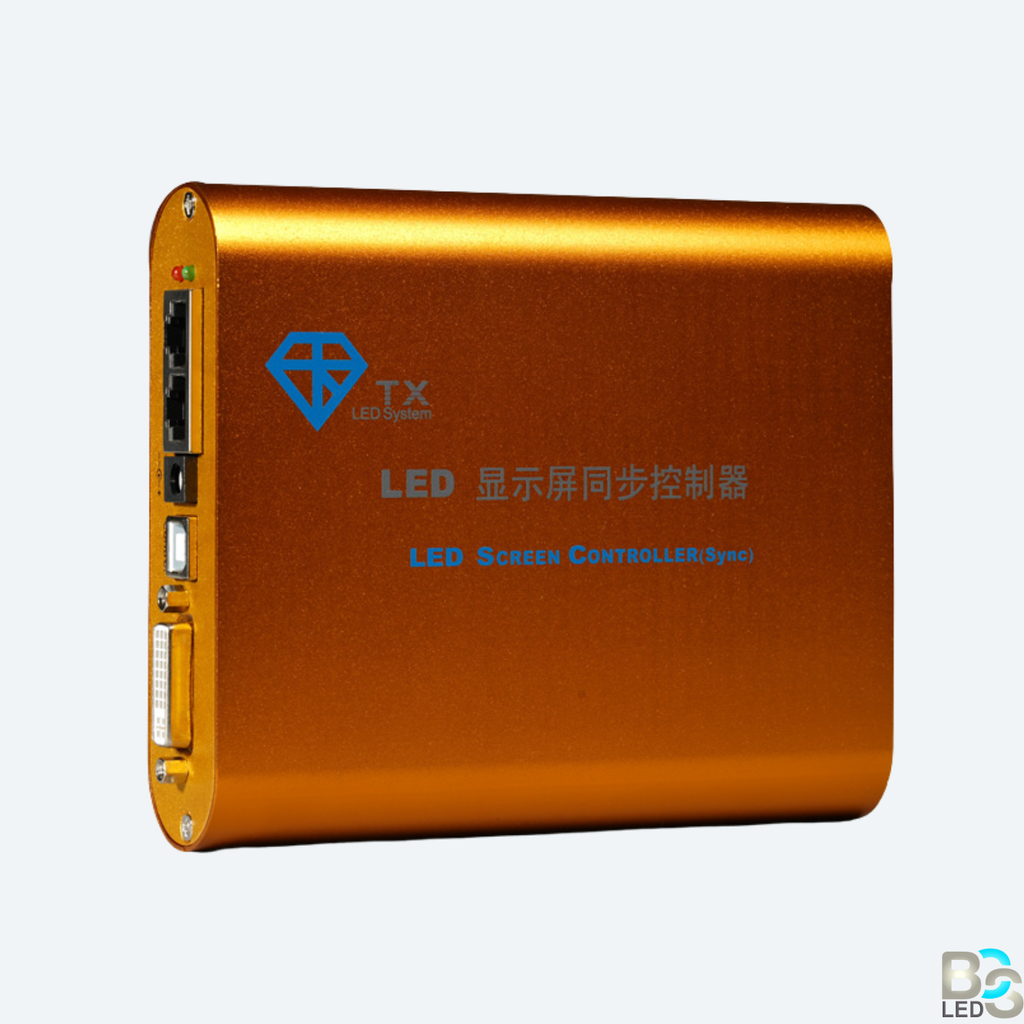

Installation method: computer PCI slot card type, box type is also available. The box is delivered with one DVI cable, one USB cable, and one 5V power adapter.
